DS2460Q Digital QAM Analysis Signal Level Meter with 5~1220 MHz Fast Spectrum Analysis

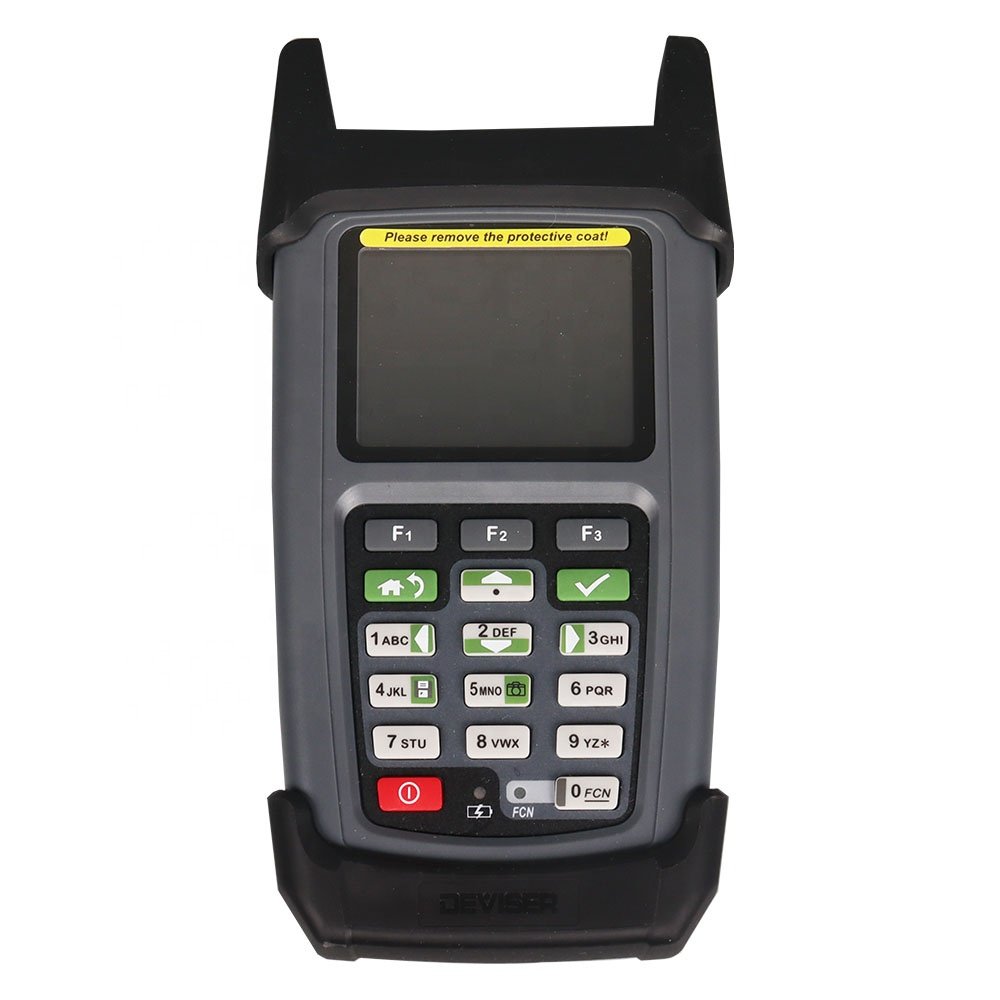

DS2460Q Digital QAM Analysis Signal Level Meter with 5~1220 MHz Fast Spectrum AnalysisProducts DescriptionThe DS2460Q is a is a multi-functional instrument that supports digital QAM and analog signals in CATV networks. It is the ideal tool for initial network installations, service, and troubleshooting tasks. The ruggedized design includes an outer chassis protector, while the icon-based GUI features programmable preset pass/fail limits. The easy-flowing menus are designed for increased efficiency and productivity for all levels of technicians.Other features – including return path & forward spectrum scan, 12 favorite tilt frequencies, AC line voltage test, HUM and DC voltage measurements, combined with complete data logging and management software – make the DS2460Q a versatile tool for cable installations.MER, Pre-Post BER measurements, and statistics features allow quick verification of loose connections, generally related to pixelated pictures or slow DS internet data flow. The digital measurement functions also help identify mismatches caused by open coaxial lines or impedance mismatch.The DS2460Q is a high-performance digital QAM signal level meter with fast 5~1220 MHz spectrum analysis, perfect for cable TV and broadband technicians. Compact and easy to use, the DS2460Q offers accurate signal quality measurements for efficient network maintenance. Choose the DS2460Q for reliable performance in any field testing environment.The DS2460Q is a powerful digital QAM signal level meter designed for professionals working with cable TV and broadband networks. Covering a wide frequency range of 5~1220 MHz, the DS2460Q provides fast and accurate spectrum analysis. With its compact design and user-friendly interface, the DS2460Q is ideal for both field and lab use. Whether you’re testing signal strength or analyzing QAM channels, the DS2460Q delivers reliable results. Choose the DS2460Q for precision, speed, and performance in every test.Features * Comprehensive tool for installation and maintenance of cable networks * Fast spectrum analysis, 5~1220 MHz * 5~1052MHz (Analog TV), 46~1052MHz (Digital TV) * Digital TV measurements include: Average Power, MER, BER, BER Statistics, Constellation * Analog TV measurements include: Level, V/A, HUM, C/N * Auto-generates and saves up to 20 custom channel plans from a cable drop * Auto test with pass/fail limits speeds up tests and simplifies results interpretation * Client-based Toolbox management software for quick unit configuration * USB Micro 2.0 port for PC data transfer * Ethernet port for Ping function * Optical Power Measurement and VFL (Visual Fault Location) available by optionSpecifications                                            Normal Spectrum AnalysisFrequency Range45 MHz ~ 1052 MHzSpan2.5 MHz; 6.25 MHz; 12.5 MHz; 25 MHz; 62.5 MHz; Full Span                                            Fast Spectrum AnalysisFrequency Range5MHz ~ 1220MHzSpan12.5MHz, 25MHz, 62.5MHz, Full Span                                            Return path Spectrum AnalysisFrequency Range5~210MHz                                            Channel ScanNumber of Channels160 channels maxScale1,2,5,10dB/divZoom1X,2X,3X,4X,5X five levels                                             Analog TV MeasurementSupported StandardsPAL, NTSC and FM Radio (Single Frequency)Level MeasurementRange: -30dBmV to 60dBmV; Accuracy: ±2dB; Resolution: 0.1dBFrequencyRange: 5M-1052M ; Accuracy: ±50ppm; Resolution: 10KHzResolution Bandwidth280KHzC/N>50dBHUM Measurement Range2% to 15%                                              Digital TVPower LevelRange: -30dBmV to 60dBmV; Accuracy: ±2dB; Resolution: 0.1dBFrequencyRange: 46MHz to 1052MHz; Accuracy: ±2dB; Resolution: 0.1dBSupported StandardsITU-T J.83 Annex A, B and CQAM Demodulation TypeAnnex A: QAM 16/32/64/128/256, Annex B&C: QAM64/256Interleave Depth128×1~128×4(J.83B);12×17(J.83A/C)Symbol Rate Range4MS/sec to 7MS/secMER41dB; Accuracy±2dBBER1E-3 to 1E-9Constellation Display Mode64/256 QAM with zoom capability                                              Line Voltage MeasurementRange0V to 100V (AC/DC) with accuracy ±2V                                              Optical Power MeasurementAccuracy±0.23dB(±5%)Detector TypeInGaAsɸ300μmRange-50dBm ~ 27dBmLinearity0.07dB/10dBResolution0.01dBm, mW, μW, nWWavelength850 nm, 980 nm, 1300 nm, 1310nm, 1490 nm, 1550nm, 1610 nmInterfaceFC\SC\ST Universal Connector Interface Adapter                                             VFL (Visual Fault Location)Output Power10mWOutput Wavelenght650±10nmSafety StandardIEC 60825-1: 2007InterfaceFC/PC                                             MiscellaneousRF Input75ΩUSBUSB Micro B 2.0Ethernet10/100MDisplay2.8” 320×240 TFT LCDAC/DC AdapterAC 100V to 240V 50-60Hz ,DC 15V/0.9ABattery7.4V 2.5Ah Lithium BatteryCharge Time/ Working Time5 hours / >5hoursDimension (W×H×L)200mm × 106mm×54mm (7.9″ x 4.2″ x 2.1″)WeightAbout 600 grams (1.3 lbs)Work/ Storage Temperature-10 ~ 40°C/-20 ~ 70°CExplore more products when you click here.You may also like and follow our Facebook Page: Clusterasia Corp. for more updates.
